Microwave Vacuum Dryer

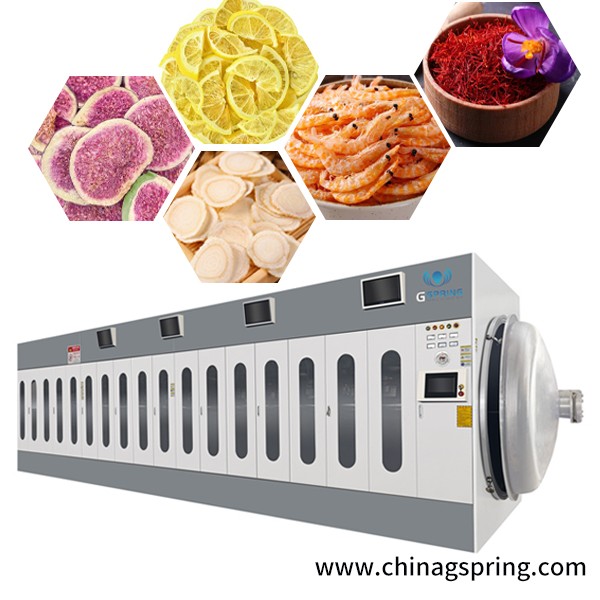

Microwave Vacuum Dryer: The Future of Efficient, Low-Temperature Drying

Vacuum microwave drying technology is an advanced method in the microwave industry that combines the best features of both microwave heating and vacuum drying. This innovative drying solution offers a significant advantage over traditional drying techniques, making it the go-to choice for industries requiring high-quality, energy-efficient, and low-temperature drying of sensitive materials.

Microwave Vacuum Dryer: The Future of Efficient, Low-Temperature Drying

1. Microwave Generator: This is one of the core components of the microwave vacuum drying machine, responsible for generating microwave energy. We have many models to be chosen,

2. Microwave Transmission System: This system transmits microwave energy from the microwave generator to the heating chamber, typically consisting of microwave ducts, converters, waveguides, etc.

3. Vacuum System: Its main function is to extract air and water vapor from the heating chamber to create a vacuum environment, which improves the drying speed and efficiency. The vacuum system usually consists of vacuum pumps, vacuum pipelines, and vacuum gauges. We all choose top brand vaccum pump & spare parts together with cooling system to control vacuum enviorment stable & long time running.

4. Heating System: Composed of microwave radiation heaters, heating chambers, and heating sensors. The microwave radiation heater is an important device for converting microwave energy into thermal energy, while the heating chamber is an important device for transferring the heat generated by the heater to the material. Heating sensors are used to measure the temperature and humidity inside the heating chamber.

5. Control System: Responsible for controlling the entire drying process to ensure that the drying process proceeds according to predetermined parameters. We all chose HMI & PLC operate system, more than 200 recipes can be storaged, easy operate & supply timely after service.

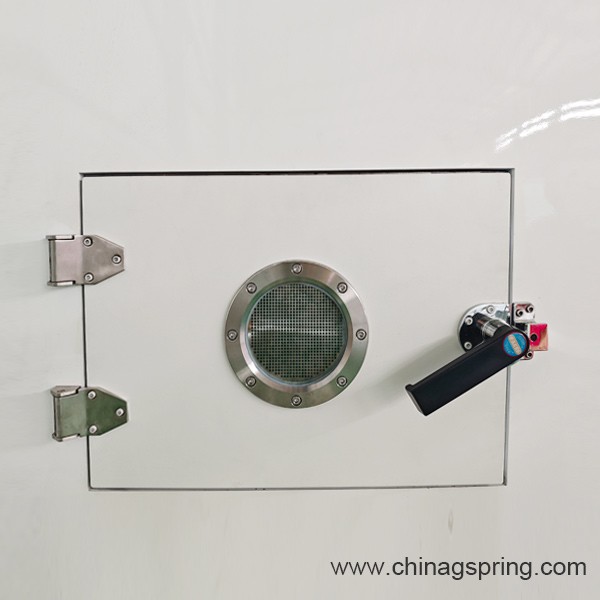

6. Cavity: The thickness and size of the heating cavity are technical parameters that affect the drying effect. We choose 8-10mm thickness or more thicker SUS304 material to gurantee the drying & vacuum cavity stable;

7. Vacuum Pressure: The vacuum pressure of the microwave vacuum drying machine is usually between 0.08-0.1Mpa, which helps to improve drying efficiency.Gspring machinery can control vacuum pressure stable for 24*7 running.

8. Microwave Frequency: The microwave frequency is generally 2450 MHz ± 50 Hz, which is one of the basic parameters for microwave heating work.

Key Advantages of Vacuum Microwave Drying

1. Efficient and Energy-Saving. One of the most significant benefits of vacuum microwave drying equipment is its energy efficiency. Unlike traditional vacuum dryers, which rely on heat transfer media, microwave technology uses electromagnetic waves to directly heat materials. This results in a much faster heating speed and dramatically improves work efficiency. In fact, vacuum microwave drying can increase drying efficiency by over four times compared to conventional methods, leading to significant energy savings and reduced operational costs.

2. Uniform and Consistent Heating. The microwave heating process ensures that heat is applied simultaneously from the inside out of the material. This method eliminates the temperature differences between the inside and outside of the product, which is common in traditional drying methods. As a result, vacuum microwave drying enhances the drying quality, ensuring uniform moisture removal and preventing overheating or underheating of the material.

3. Precise and Easy to Control. Microwave power in vacuum dryers can be adjusted quickly and precisely, providing an easy and efficient way to control the drying process. The system operates with no inertia, which makes it ideal for continuous production and instantaneous adjustments. This leads to automation of the drying process, reducing the need for manual intervention and improving overall operational efficiency.

4. Improved Product Quality. One of the most significant advantages of vacuum microwave drying is its ability to preserve product quality. The low-temperature drying process helps maintain the original flavor, color, and nutritional content of the materials, which is crucial in food production and other sensitive materials. It is especially beneficial in the preservation of heat-sensitive products, such as herbs, fruits,      and vegetables, allowing them to retain their natural properties while extending their shelf life.

5. Disinfection and Sterilization Function. Microwave radiation has natural disinfection and sterilization properties. This feature helps ensure that the products are not only dried effectively but also safe and hygienic, making it particularly important for industries like food processing and pharmaceuticals. The sterilization function reduces the risk of contamination, thereby enhancing product safety.

6. Significant Economic Benefits. The economic benefits of vacuum microwave drying are substantial.By improving drying speed, reducing energy consumption, and maintaining higher product quality, companies can experience a high return on investment (ROI). Compared to traditional drying technologies, the Vacuum Microwave Dryer delivers both cost savings and increased profitability.

7. Low-Temperature Drying. Drying under vacuum conditions allows materials to be processed at much lower temperatures than conventional methods. This is ideal for heat-sensitive materials that could degrade or lose their nutritional value at higher temperatures. For example, delicate products like herbs or spices retain their flavor, color, and appearance while avoiding damage that might occur with traditional high-temperature drying methods.

Applications of Vacuum Microwave Drying

Vacuum microwave drying is especially effective for materials that are heat-sensitive and prone to decomposition or polymerization at high temperatures. This technology is widely used in a variety of industries, including food, pharmaceuticals, and herbal medicine. Here are some key applications:

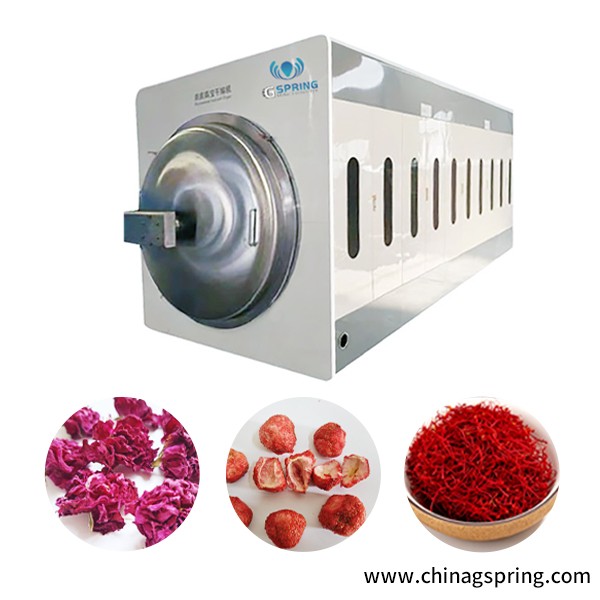

1. Expensive and Luxury Herbs. Vacuum microwave drying is perfect for expensive herbs like Saffron, Ginseng, Cordyceps, and Vanilla, which require precise and careful drying to maintain their aroma, taste, and medicinal properties. This technology helps preserve the active compounds in these herbs while ensuring uniform drying.

2. High-Quality Teas & Dried Fruits. Premium teas such as Tea Flowers and other dried fruits like Wolfberry, Lemon Chips, and Fig Chips benefit from      vacuum microwave drying. The ability to dry at low temperatures helps preserve their color, taste, and nutritional value,      ensuring that the product is of the highest quality for consumers.

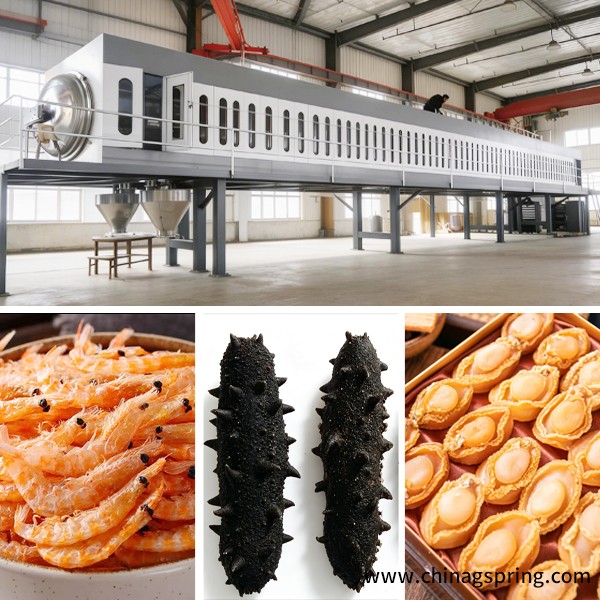

3. Dried Seafood. The drying of seafood like Sea Cucumber, Shrimp, and Fish requires a process that prevents loss of flavor and texture. Vacuum microwave drying helps maintain the integrity of the seafood, preserving its nutritional profile and extending its shelf life.

For example, the vacuum microwave drying equipment produced by us only takes 1-3 hours to dry fruits, which not only greatly saves energy and labor, but also better maintains the original shape, color, flavor and nutritional components of the product.

4. Chinese Medicinal Herbs. Medicinal herbs, such as Ginseng and other traditional Chinese medicine materials, are sensitive to heat and need precise drying to preserve their therapeutic properties. Vacuum microwave dryers ensure that these delicate products retain their medicinal benefits while being dried effectively.

5. Animal and Plant Specimens. Vacuum microwave drying is also used for biological specimens where preservation of shape, size, and structural integrity is essential. The low-temperature drying process helps in preserving delicate plant and animal samples without causing damage.

 Technical Specifications

Remark: Above parameter is for reference. All microwave dryer specific parameter need to be designed based on customer’s specific industrial request.

In conclusion, vacuum microwave drying technology stands as a game-changer in the industry, offering numerous advantages including energy efficiency, uniform drying, and the preservation of product quality. With its applications spanning a wide range of industries, from luxury herbs and dried fruits to seafood and medicinal plants, vacuum microwave dryers provide a reliable and effective solution for businesses looking to improve their drying processes while maintaining high-quality standards.

Welcome to contact us for further information required. Email: grace@chinagspring.com.

Camera Machine Trial Can Be Arranged At Any Time!

FAQ

1. Question: If the vacuum microwave dryer can be continuous microwave dryer?

Answer: No. As vacuum microwave dryer must work under vacuum condition, so it only can be batch type, can't be continuous microwave dryer. But based on different application, it can be designed into different size for different capacities.

2. Question: If all material which can be used in normal microwave dryer also can be used for vacuum microwave dryer?

Answer: In theory, it's a Yes. With vacuum microwave dryer, it can do color protect, keep nutritional in a low temperature. But considering the material process cost & reality & application industry , some material needn't vacuum microwave dryer, normal microwave dryer will be enough.

3. Question: What's the disadvantage for vacuum microwave dryer?

Answer: Vacuum microwave dryer can't be for continous work yet, if too big capaities required, the best choice need to conside tunnel microwave dryer.
