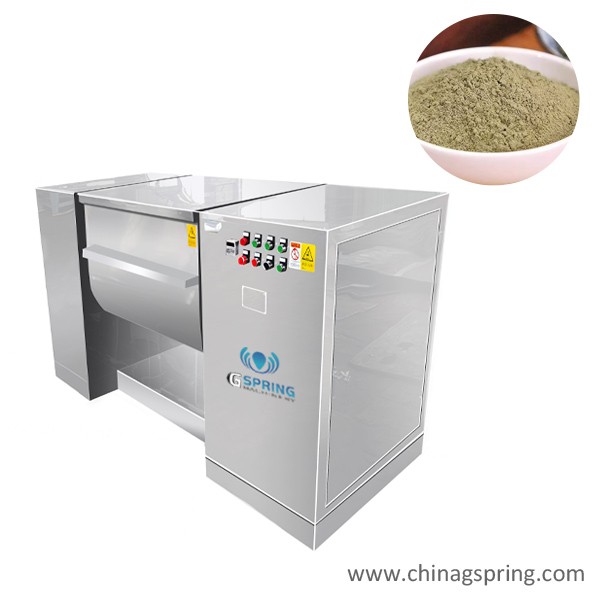

CH Series Trough-shaped Mixer

CH series trough-shaped mixer is widely used for mixing of dry granulate material and paste
material in pharmaceutical,food-stuff,forage,chemical and other industries.It is especially
suitable for mixing raw materials that have high requirement in uniform and high difference in
specific gravity.The machine has the advantages of compact structure,simple operation,beautiful
appearance,small occupation area,convenient cleaning,good mixing effect,etc.


Main Application

CH series trough-shaped mixer is widely used for mixing of dry granulate material and paste material in pharmaceutical,food-stuff,forage,chemical and other industries.

It is especially suitable for mixing raw materials that have high requirement in uniform and high difference in specific gravity.The machine has the advantages of compact

structure,simple operation,beautiful appearance,small occupation area,convenient cleaning,good mixing effect,etc.

Working principle

The machine makes S type stiring paddle rotate by mechanical transmission,pushes the material turn and mix evenly,operating with electrical control,it can set the mixing time,

then automaticaly shut down,electric charging,improve the mixing quality of each batch of materials and achieve a high degree of uniformity of the mixture.


Technical Parameters

Model 型号	Total volume 全容积(m³)	Production capacity 生产能力(kg/次)	Mixing time 混和时间(min)	Mixing motor搅拌功率(kw)	Discharging motor 倒料功率（kw)	Mixing Speed 搅拌转速(r/min)	Weight 重量(kg)	Overall dimension 外形尺寸(长宽高)(mm)
CH-50	50	20	8-12	1.5	0.37	24	200	1200x500x950
CH-100	100	40	8-12	2.2	0.55	24	250	1400x580x1000
CH-150	150	60	8-12	3	0.55	24	300	1685x600x1000
CH-200	200	80	8-12	4	0.75	24	380	1850x600x1000
CH-300	300	120	8-12	5.5	1.1	24	550	2160x700x1250
CH-400	400	160	8-12	5.5	1.1	24	680	2280x700x1250
CH-500	500	200	8-12	7.5	1.5	24	780	2450x700x1250
CH-600	600	240	8-12	7.5	1.5	24	900	2500x900x1350
CH-800	800	320	8-12	11	2.2	24	1200	2750x1100x1450
CH-1000	1000	400	8-12	15	3	24	1420	2850x1200x1550
