31/33/35 Rotary Tableting Machine

It is suitable for the production of tablets in the pharmaceutical industry,as well as for the chemical,food,electronic and other industrial sectors.It can press various special-shaped tablet products.


1.It is suitable for the production of tablets in the pharmaceutical industry,as well as for the chemical,food,electronic and other industrial sectors.

It can press various special-shaped tablet products.

2.The outer cover is fully enclosed stainless steel,and the inner table is made of stainless steel,which can maintain the surface gloss and prevent cross contamination,

and conforms to GMP.

4.The transparent protective cover can clearly see the mechanical operation.

4.The speed is stepless speed regulation,which can be adjusted at will.

5.under the main body of the machine.It is a safe and separate independent component,which will ot pollute each other.It also alows the transmission shat to penetrate

into the oil pool,get suficient lubrication,and reduce noise and wear.

6.Equipped with dust suction device,it can absorb the dust flying in the room.

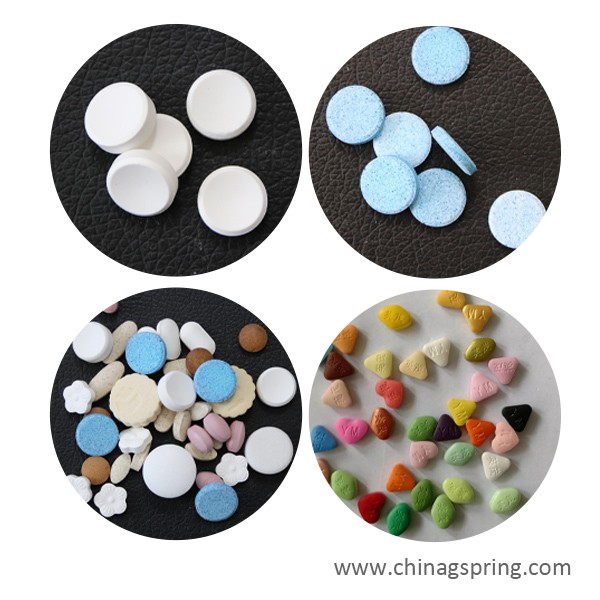

Tablet press series mold+sample


Technical parameter

Model 型号	XYP-29D	XYP-31D	XYP-35D	XYP-41D
Die number (to pay)冲模数(付)	29	31	35	41
Maximum tablet pressure(kn)最大压片压力	80
Maximum tablet diameter(mm)最大压片直径	24	22	13	13
Maximum filling depth(mm)最大充填深度	15
Maximum tablet thickness(mm)最大片剂厚度	6
Tumtable rotation speed (r/min)转盘转速	14-37
Production capacity (tablets / h)生产能力	125000	135000	150000	170000
Power(kw)功率	4
Shaped outer dimensions (mm)外形尺寸	950×1230×1670
Weight(kg)主机重量	1850
