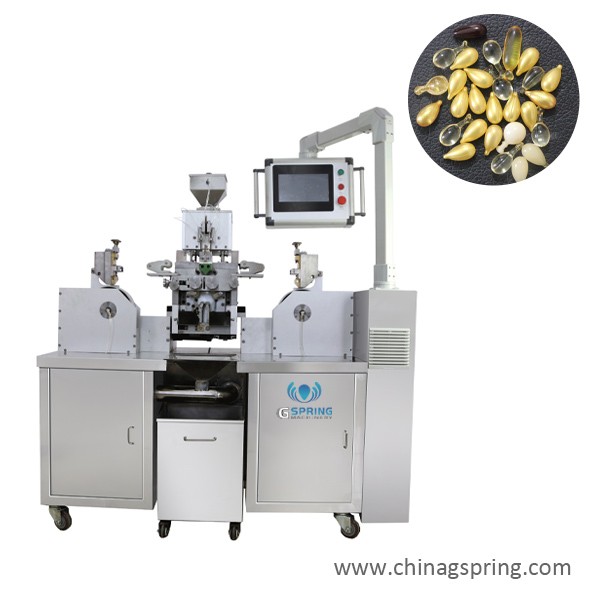

Soft Gel Capsule Machine

Main feature

Oil bath electric heating spray body:

1.The temperature of the spray body is uniform,the temperature is stable,and the temperature fluctuation is guaranteed to be within≤0.1℃(solved the problems of the

ball head and false joint caused by uneven heating temperature)

2.Due to the high temperature accuracy,the film thickness can be reduced by about 0.1mm (saving about 10%of gelatin).

The computer automatically adjusts the injection volume：

1.Automatically adjust the loading volume,save time and save raw materials.

2.The  loading accuracy  is  high,and the  loading accuracy  is≤±1%,which greatly  reduces the  loss of raw  materials.

◆ The hardness of the reversing plate,upper and lower bodies,left and right pads reaches HRC60-65.Durable:suitable for users to produce various liquid suspension

Chinese medicine varieties,greatly improving the service ife.

◆ The mold lock disk (three-point locking):does not run the line after locking,and also has a fine-tuning function,the operation is very simple.

◆ Trace lubrication system:The oi quantity is automatically adjusted according to the speed. (Reduce paraffin oil consumption and save costs).

◆ Builtin cold air system,equipped with chiller.

◆ The rubber roller adopts a separate frequency conversion speed regulation:if the quality of the glue is not good during production,it can be solved by the rubber roller

speed regulation.

◆ Cold  air  seting  design  in  the  pillout  area;avoid  entanglement  of  the  mesh  with  the  mesh  and  make  the  capsule  more beautiful.

◆ The lower part of the mold uses a special inclined bucket,which is very convenient to clean.

◆  The feed pump and the machine head are driven outside,and the lubricating oilin the feed pump will not enter the machine head.(The feed pump is independently sealed)

Technical Parameters
