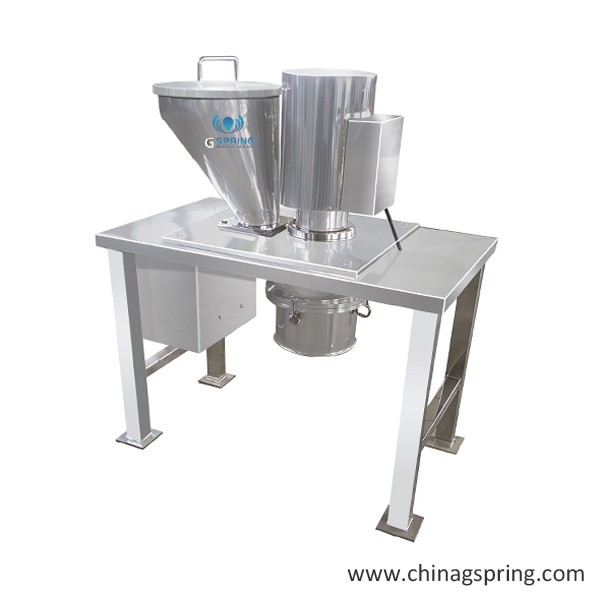

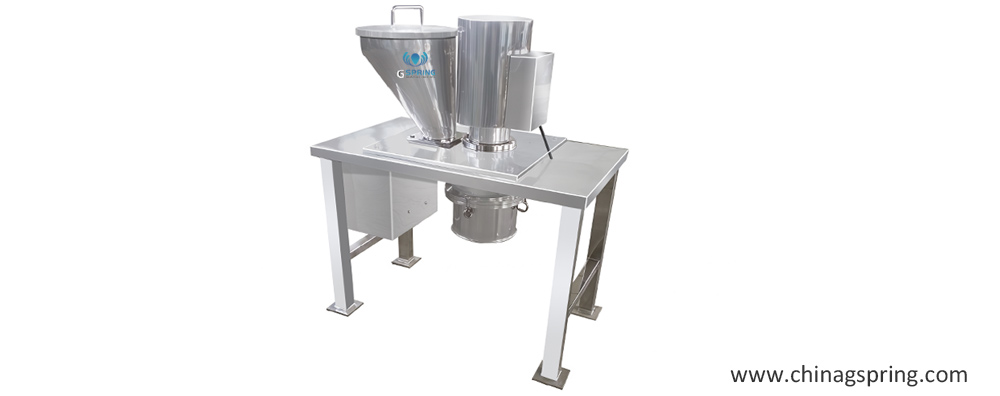

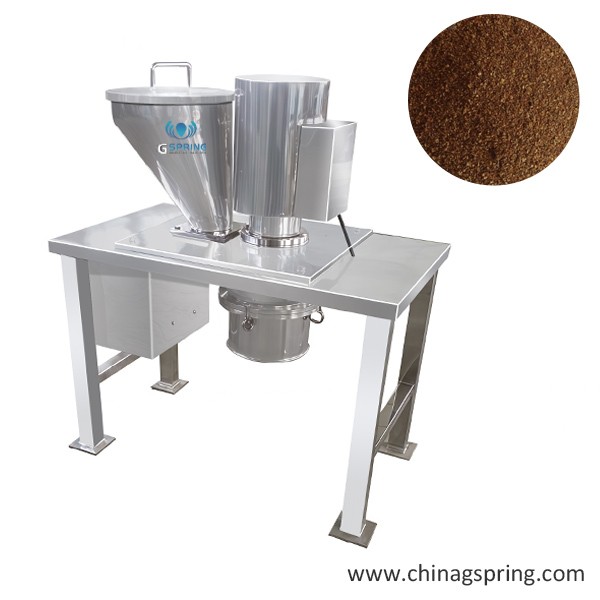

FZ Series Crushing Granulator

1.Pharmaceutical:raw material crushing,wet material granulation,dry material granulation,recycle the pills that does not conform to the requirements according to the size of the particle.
2.Food:such as biscuits,snacks and other crushing recycling.
3.others:crushing and granulating of raw materials,blocked materials.


Main Application

1.Pharmaceutical:raw material crushing,wet material granulation,dry material granulation,recycle the pills that does not conform to the requirements according to the

size of the particle.

2.Food:such as biscuits,snacks and other crushing recycling.

3.others:crushing and granulating of raw materials,blocked materials.

Working principle

Raw materials fll nto the cone working room after going into the crushing granulator inlet,rotating knifes make a effect to raw material and the material be thrown to the

screen surface,at the same time the material is cutted by knifes and screen,on the screen surface,material is crushec into small particles and discharged through the

filter screen.Crushing particle size depends on the screen mesh,the distance between the knifes and the screen,and rotary speed.


Technical Parameters

Model型号	FZ-150	FZ-300	FZ-450	FZ-700	FZ-1000
Production capacity生产能力(kg/h)	15-150	30-300	45-450	70-700	100-1000
Sieve diameter筛网直径（mm)	1-8	1-8	1-8	1-8	1-8
Motor power电机功率(kw)	1.5	2.2	3	4	5.5
Spindle speed主轴转速(r/min)	300-2000	300-2000	300-2000	300-2000	300-2000
Weight重量(kg)	150	220	300	380	500
Overall dimension 外形尺寸(长宽高)(mm)	810x445x1345	850x480x1400	920x445x1430	1000x500x1530	1100x560x1785
