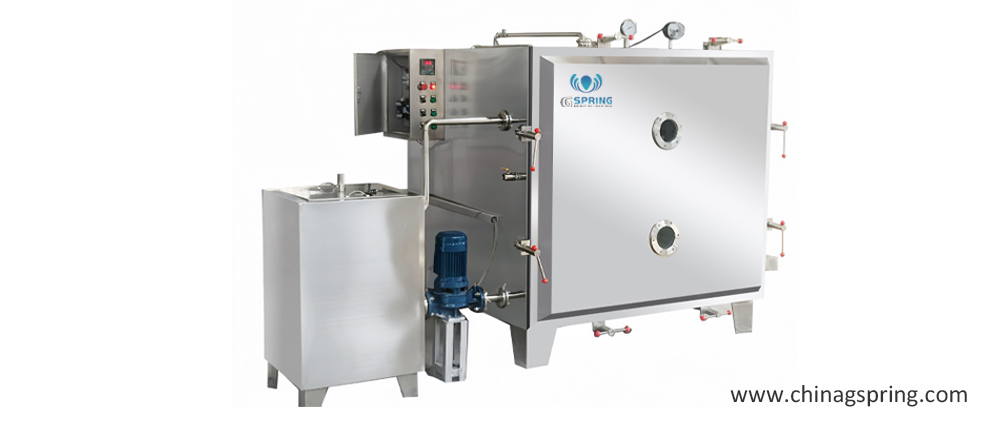

Vacuum drying is the process of heating and drying materials under vacuum conditions.The water in the materials is decomposed and vaporized by heat,and then discharged outdoors with vacuum pumping.This is achieved by using a vacuum pump to vacuum and dehumidify the materials
Vacuum drying is the process of heating and drying materials under vacuum conditions.The water in the materials is decomposed and vaporized by heat,and then
discharged outdoors with vacuum pumping.This is achieved by using a vacuum pump to vacuum and dehumidify the materials
Scope of application
temperature drying in industries such as pharmaceuticals,food,light industry,and chemicalindustry.t has a simple structure,convenient use,low energy consumption,
and high effciency,making it a popular device among users.
characteristic
1.Low temperature vacuum drying is the process of drying materials in a vacuum state at a normal temperature.The reason for this is that the heat transfer in the vacuum
state increases,which can save energy consumption for a certain amount of heat supply,just like the principle of reducing boiling points at high altitudes.
2.Due to the steam or electric heating pipes heating between each layer of the drying rack in the box,without touching the outer box,the heat loss of the box under vacuum
conditions is minimal.
3.Low temperature vacuum drying belongs to static drying,which does not have a fan forced hot air for convective circulation and high temperature,so it willnot be affected
by the internal factors and color quality of the dried material in terms of shape.
4.The door of the box is equipped with a miror for easy observation of the changes in indoor materals during the drying process. The boxis equipped with a vacuum gauge
and temperature gauge,as wellas a vacuum port and a vent port(seff made side valve)
5.The upper part of the inner wallof the boxis arched in a circular shape,allowing water vapor and droplets to flow down from both sides of the inner wall The bottom of the
inner boxis in a groove shape,allowing water to flow into the bottom groove and be regularly discharged by the sewage pipe.In order to facitate the removal of the drying rack
during cleaning,the four legs of the drying rack have wheels and tracks.The box door is equipped with silicone rubber sealing strips and 6 locking handwheels to compress
the door sealing strip without air leakage,which is conducive to vacuum pumping.
Technical parameter
Model 型号 | FZG-4 | FZG-10 | FZG-15 | ZFG-20 |
箱内尺寸 cm | 75X75X116 | 92x146x123 | 122x138x123 | 155x150x123 |
箱外尺寸 cm | 105x95x170 | 122x166x175
| 153x158x175
| 185x170x175 |
水箱尺寸 cm | 60x60x170
| 70x70x175
| ||
烘架层数 | 8 | |||
层间距离 cm | 12 | |||
烘盘尺寸 cm | 46x64x4.5
| |||
烘盘数(只) | 8 | 24 | 32 | 48 |
烘盘管内使用压力 MPa | ≤0.784 | |||
烘架使用温度℃ | 常温-200 | |||
箱内空载真空度 MPa | ≤0.098 | |||
加热功率 KW | 6 | 6-12 | ||
加热方式 | 可定制电加热或蒸汽加热 |
