Turntable electronic granulator

1、Vibrating channel blanking,oscillator stepless speed regulation,touch screen PLC inteligent control,optical fiber sensing head counting,system self-test,fault indication alarm,automatic shutdown and other technologies.
2、Good compatibility:t can count and bottle solid preparations or solid particles such as tablets (including special-shaped tablets),capsules,soft capsules (transparent and opaque),pills,etc.
3、No damage to materials:blanking and discharging shallbe uniform and stable,without damage to materials,so as to ensure
accurate bottling.


Main feature

1、Vibrating channel blanking,oscillator stepless speed regulation,touch screen PLC inteligent control,optical fiber sensing head counting,system self-test,fault indication

alarm,automatic shutdown and other technologies.

2、Good compatibility:t can count and bottle solid preparations or solid particles such as tablets (including special-shaped tablets),capsules,soft capsules (transparent and

opaque),pills,etc.

3、No damage to materials:blanking and discharging shallbe uniform and stable,without damage to materials,so as to ensure

accurate bottling.

Optional

No bottle counting function





Technical parameter

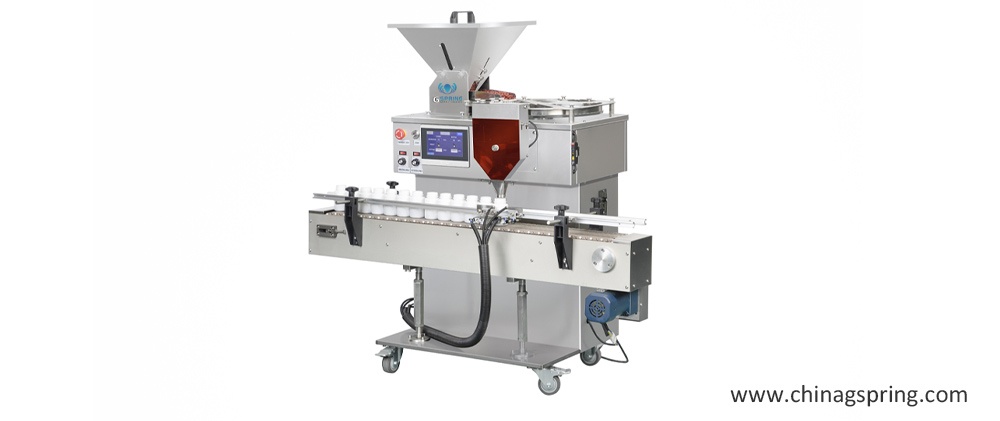

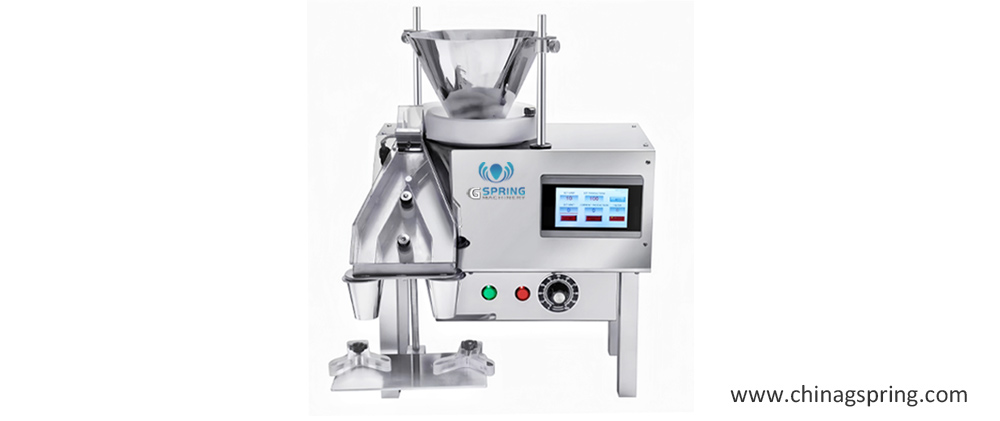

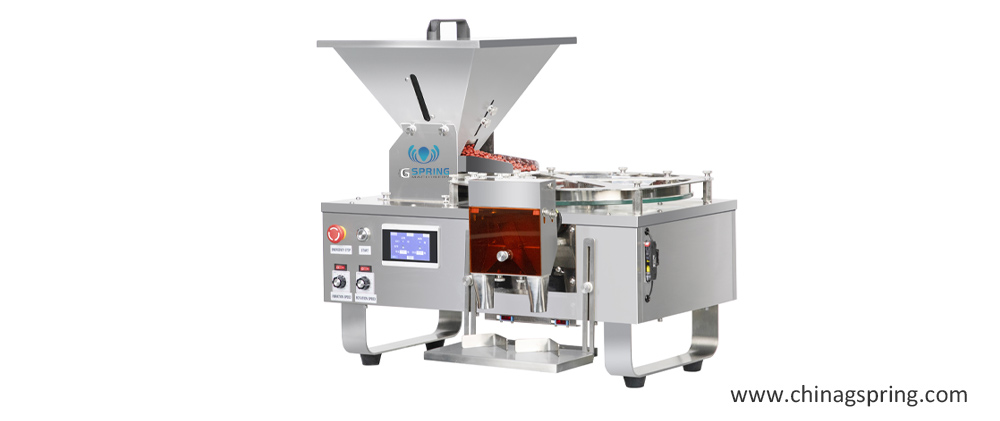

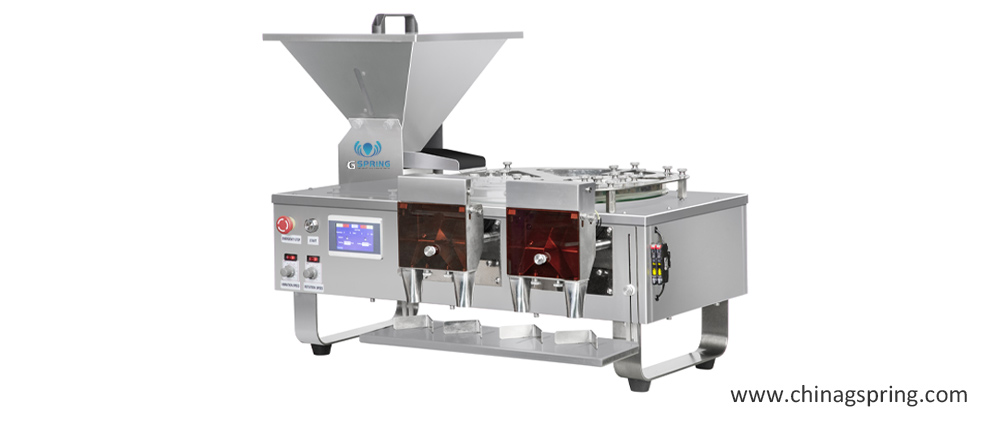

Model 型号	DSL-2C	DSL-2S	DSL-4S	DSL-2AS
Voltage（V)电压	110-220V 50HZ-60HZ
Power(W)功率	30	500	600	700
Bottle placement method摆瓶方式	Manual bottle placing手动放瓶			Conveying takeaway bottles 输送带走瓶
计数方式 restart at	Infrared acquisition 红外探测
灌装物料 Filling materials	硬胶囊、软胶囊，Ф5~25 素片、异形片、糖衣片，Ф3 - 12丸剂
Loadingrange装量范围	2-9999粒/片
Applicable bottle mouth适合瓶口	10-1000ml 圆瓶、方瓶、异型瓶等 Round bottle,square bottle,special-shaped bottle, etc
Accuracy正确率	99.5%以上
数粒速度(粒/分钟 )	500-1500	600-2000	1200-3000	600-1500
Size( mm )尺寸	400x370x580	740x580x730	920x580x730	1300x700x1300
Weight ( kg )重量	20	55	65	150
Degree of automation自动化程度	半自动 semi-automatic			全自动 full-automation
Placement method摆放方式	桌面式 Desktop			立式 vertical
