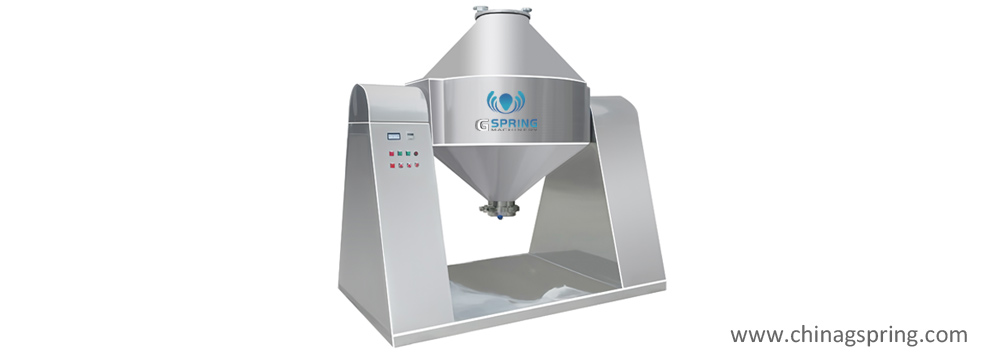

Model W Double Cone Mixer

Model W double cone mixer is widely used for mixing of dry granulate material in pharmaceutical,food-stuf,forage,chemical dyes,pigments, plastics,resins,seasonings,cosmetics and other industries.


Main Application

Model W double cone mixer is widely used for mixing of dry granulate material in pharmaceutical,food-stuf,forage,chemical dyes,pigments, plastics,resins,seasonings,

cosmetics and other industries.

Working principle

Double cone cylinder does 360°rotary motion under the driving of the transmission shaftin space,material does translation,shear,ifusion and other movement with the

rotation of the cyinder,variety of movement is stagered and can achieve full mixing in a short period of time.For users with the requirements of the material feeding,

our company can also provide vacuum feeding machine for double cone mixer,reduce the labor inte nsity of the material feeding,optimize the process.For easy

agglomeration and poor mobility of the material,the machine can also be configured to force mixing device, so the mater can be fully mixe

Technical Parameters

Model 型号	Total volume 全容积(m³)	Production capacity 生产能力(kg/次)	Mixing time 混和时间(min)	Motor power 电机功率(kw)	Spindle Speed 筒体转速(r/min)	Weight 重量(kg)	Overall dimension 外形尺寸(长宽高)(mm)
W200	0.2	64	6-10	1.1	12	310	1500x700x1650
W300	0.3	96	6-10	1.5	12	400	1685x800x1850
W500	0.5	160	6-10	2.2	12	580	1910x800x1940
W1000	1	320	6-10	4	12	860	2700x1000x2370
W1500	1.5	480	6-10	5.5	12	1200	2900x1000x2600
W2000	2	640	6-10	7.5	10	1630	3200x1300x3200
W2500	2.5	800	6-10	11	10	1880	3386x1900x3560
W3000	3	960	8-12	11	10	2400	4450x2200x3600
W4000	4	1280	8-12	15	10	2980	4860x2400x4000
