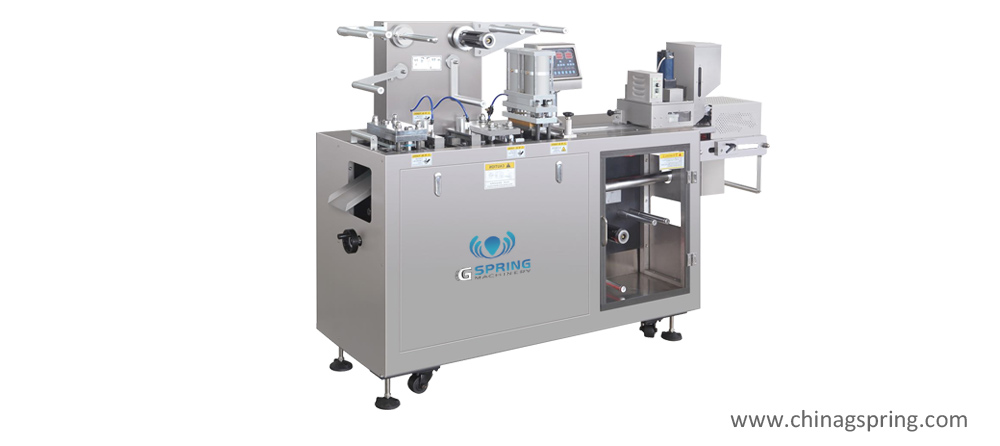

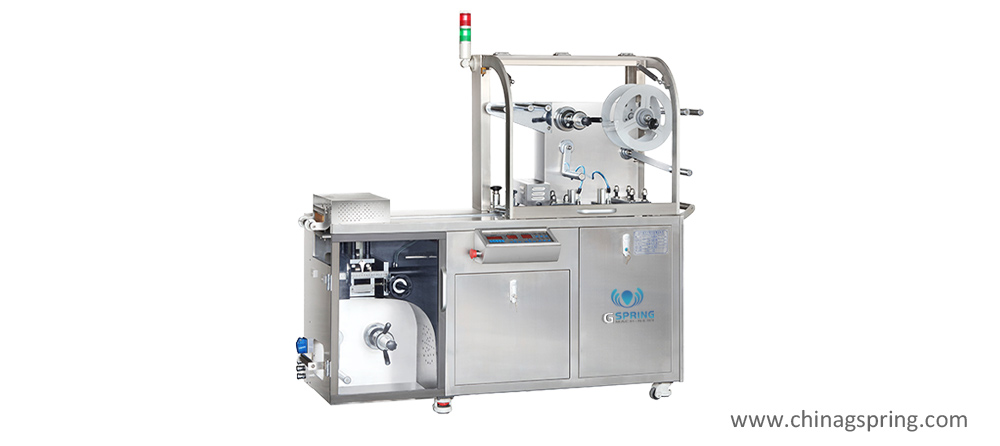

Blister Packaging Machine

1、The transmission mechanism is adopted,and the main transmission shat is diven by the chain,which avoids the eror and noise of other gear transmission.
2、The whole machine adopts sectional combination:PVC forming,feeding and heat sealing are in one section,and tropical aluminum cold forming,heat sealing and blanking are in one section for split packaging.
3、Photoelectric control system,PVC,PTP and duralumin packaging automatic feeding and waste edge automatic punching device are adopted to ensure synchronous stability of ultra+ong distance and multi-position.


Features

1、The transmission mechanism is adopted,and the main transmission shat is diven by the chain,which avoids the eror and noise of other gear transmission.

2、The whole machine adopts sectional combination:PVC forming,feeding and heat sealing are in one section,and tropical aluminum cold forming,heat sealing and blanking are in one section for split packaging.

3、Photoelectric control system,PVC,PTP and duralumin packaging automatic feeding and waste edge automatic punching device are adopted to ensure synchronous stability of ultra+ong distance and multi-position.

Note

1.Optional photoelectric detection and correction device,

2.Optional servo motor traction

3.Optional plexiglass cover

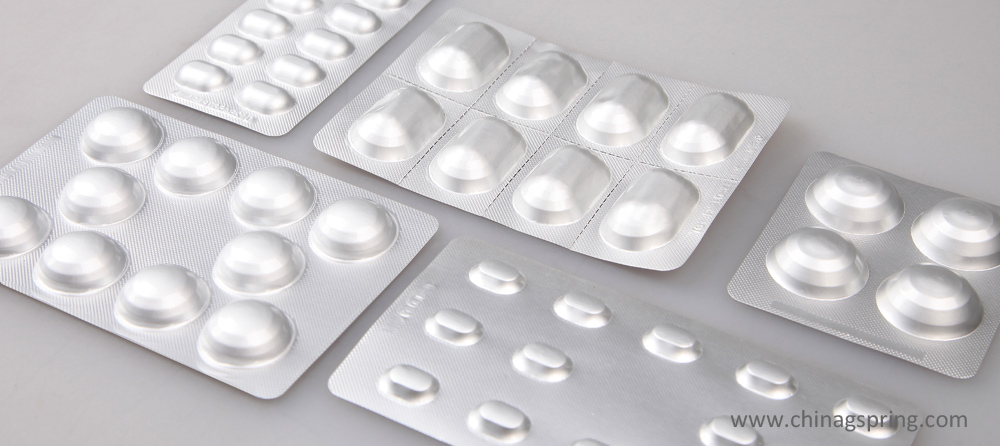

Sample of aluminum plastic blister packaging machine

Technical Parameters

Model 型号	DPP-110	DPP-160
Voltage（V)电压	220	380/220
Cutting frequency(次/分)冲裁次数	10-35	15-35
Production capacity生产能力(版/时)	1000-2400	4200(一出2版）
Max fomming area and depth(mm)最大成型面积及深度	70x110x(标准深度≤14mm)最大深度26mm	150x110(标准深度≤15mm)最大深度26mm
Standard travelrange标准行程范围(mm)	20-80	40-120（可按用户要求设计）
Standard section标准版块 (mm)	80×57	80×57
Air pressure(MPa)空气压力	0.6-0.8	0.6-0.8
Total power总功率 (kw)	3.0	3.8
Main motor power(kw)主电极功率	0.75	1.5
PVC sheet(mm )PVC 硬片	0.15-0.5*110or125	0.15-0.5*160
PTP aluminum foil PTP铝箔(mm)	0.02-0.035*110or125	0.02-0.035*160
Dialysis paper透析纸 (mm)	50-100g*110or125	50-100g*160
Mold cooling模具冷却	自来水或循环水	自来水或循环水
Dimensions外形尺寸(mm)	19006001100	23206501500
Weight 重量 (kg)	400	900
Noise indicators噪声指标(DBA)	＜75	＜75
