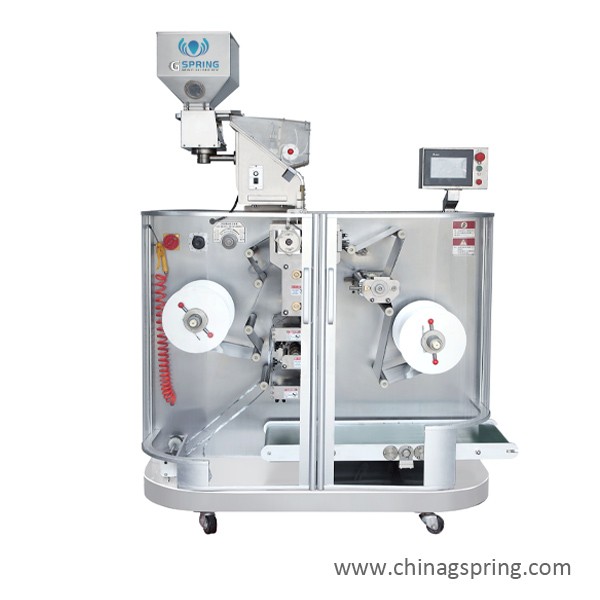

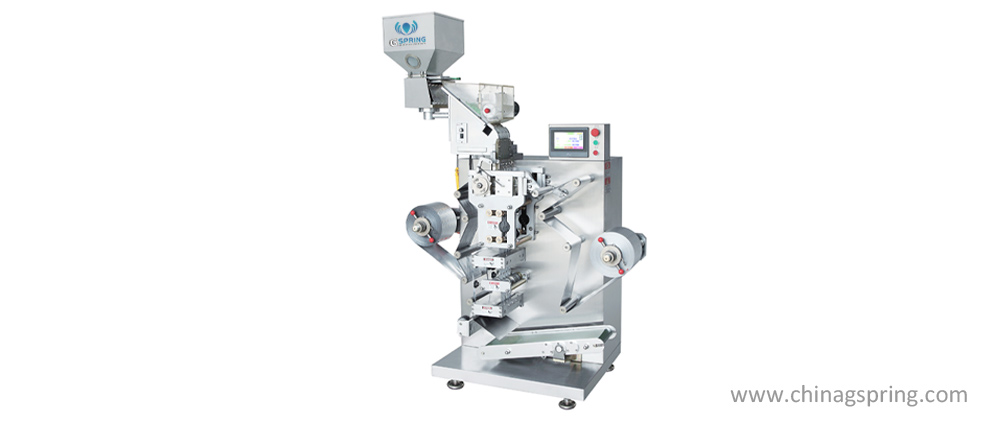

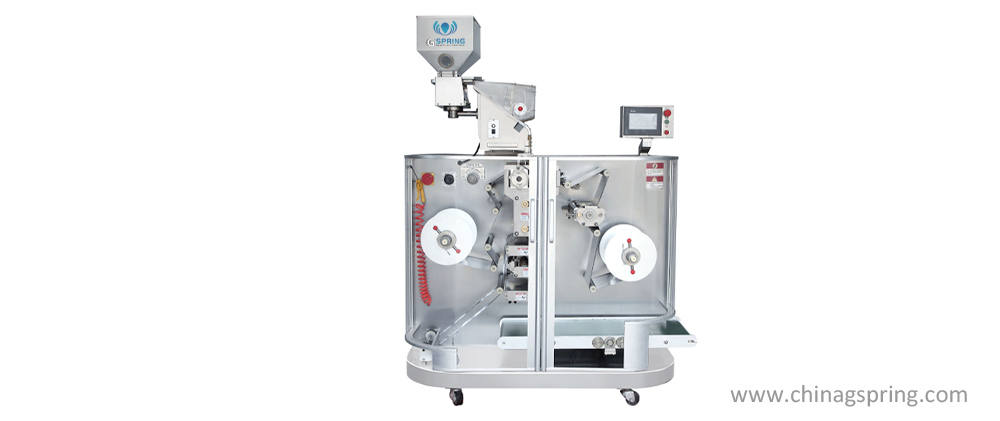

Soft double aluminum packaging machine

1、The whole machine adopts PLC touch screen control system,and the number of punching and cutting plates can be freely set and adjusted on the touch screen,so there is no need to worry about the trouble of frequently changing various gears and cams due to changing the packaging specifications and varieties.
2、The temperature control of the roller mold adopts the imported temperature controller with PID control,and the temperature measurement adopts the advanced PT100 roller surface thermometer assembled with imported parts,which ensures the stability and reliability of the surface temperature of the roller mold and improves the sealing performance of the heat-sealed drug plate.
3、The host adopts stepless speed regulation of frequency converter,the equipment operates stably and reliably,the transmission structure is simple,and the maintenance is convenient.
4、Optional functions:solid mold wheel coding,image and text matching,optical fiber detection,grain missing and waste removal,etc.


Main performance characteristics

1、The whole machine adopts PLC touch screen control system,and the number of punching and cutting plates can be freely set and adjusted on the touch screen,

so there is no need to worry about the trouble of frequently changing various gears and cams due to changing the packaging specifications and varieties.

2、The temperature control of the roller mold adopts the imported temperature controller with PID control,and the temperature measurement adopts the advanced

PT100 roller surface thermometer assembled with imported parts,which ensures the stability and reliability of the surface temperature of the roller mold and improves

the sealing performance of the heat-sealed drug plate.

3、The host adopts stepless speed regulation of frequency converter,the equipment operates stably and reliably,the transmission structure is simple,and the maintenance

is convenient.

4、Optional functions:solid mold wheel coding,image and text matching,optical fiber detection,grain missing and waste removal,etc.

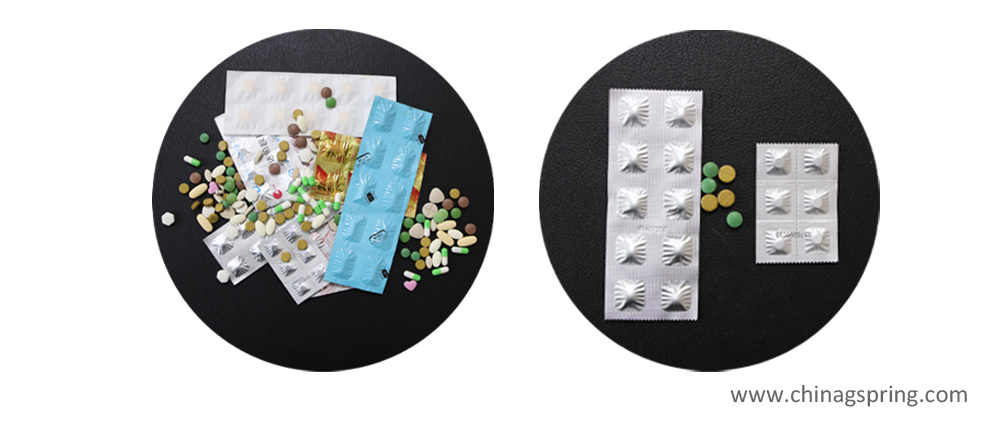

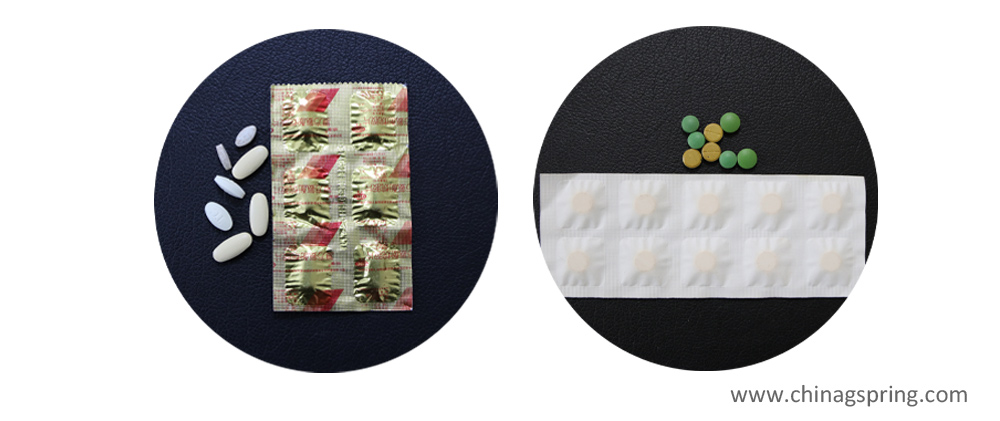

Sample of aluminum plastic blister packaging machine


Technical Parameters

Model 型号	RSL-160B	RSL-260B	RSL-350B
Production capacity(tablets,grains/min)生产能力(片、粒/分钟）	≤800	≤1100	≤1500
Punchingfrequency(times/min)冲裁频率(次/分钟)	40-80	10-30
Compressed air压缩空气	0.45 Mpa≥0.2m³/min
Maximum packaging material width(mm)最大包装材料宽度	160	250	350
Coil diameter(mm)卷材直径	300
Toal Power(W)总功率	2.75	3.75	4
Dimensions(mm)尺寸	191x183x249	130x147x211cm
Weight ( kg )重量	1300x750x1900	1600x850x1900	1600x950x1900
