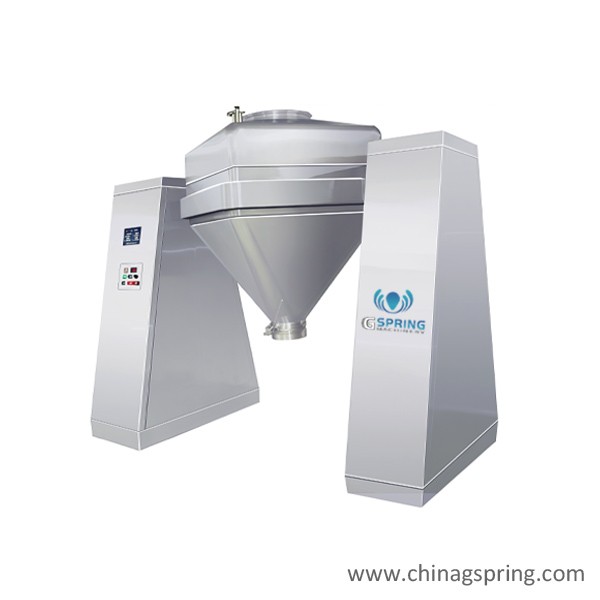

FH Series Square Cone Mixer

FH series square cone mixer is a new-style mixer that widely used for mixing of dry granulate material in pharmaceutical,food-stuff,forage,chemical and other industries.The machine can mix powder or granule very evenly and achieve the best mixing effect.


Main Application

FH series square cone mixer is a new-style mixer that widely used for mixing of dry granulate material in pharmaceutical,food-stuff,forage,chemical and other industries.

The machine can mix powder or granule very evenly and achieve the best mixing effect.

Working principle

Fill the materal into the square conical closed mixing barrel,the symmetrical axis of the hopper has an angle with the axis of the rotation axis.The material that has diferent

components does three-dimensionalspace motion in the closed cone cylinder,produces a strong inversion and difusion contraction effect and achieves the best mixing effect.

Technical Parameters

Model 型号	Total volume 全容积(m³)	Production capacity 生产能力(kg/次)	Mixing time 混和时间(min)	Motor power 电机功率(kw)	Spindle Speed 筒体转速(r/min)	Weight 重量(kg)	Overall dimension 外形尺寸(长宽高)(mm)
FH200	0.2	70	6-10	1.1	12	320	1500x700x1700
FH300	0.3	100	6-10	1.5	12	410	1685x800x1900
FH500	0.5	170	6-10	2.2	12	595	1910x800x1980
FH1000	1	335	6-10	4	12	880	2700x1000x2400
FH1500	1.5	500	6-10	5.5	12	1250	2900x1000x2680
FH2000	2	670	6-10	7.5	10	1690	3200x1300x3280
FH2500	2.5	830	6-10	11	10	1940	3386x1900x3650
FH3000	3	1000	8-12	11	10	2500	4450x2200x3600
FH4000	4	1400	8-12	15	10	3100	4860x2400x4100
