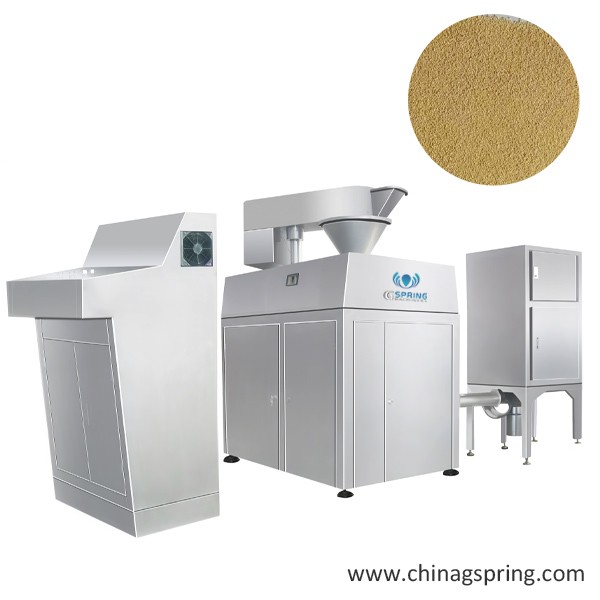

GK Series Dry Granulator

Main Application

1.Medicine:tablet,capsule flling  particles,etc;

2.Food:food manufacturing particles,seasoning particles,etc;

3.Plastic:all kinds of plastic molding particles;

4.Chemical industry:catalyst,pigment,detergent and other particles.

 Equipment Features

1.Even density of dry granules,good disintegration and high granule ratio.

2.Unique feeding structure guarantees efficient material feeding.

3.Circulated cooling water refuses sticky problems.

4.No need of water,wetting agent or second-time drying,less procedures,high efficiency and low cost.

5.Advanced electric hydraulic pressure,easy to operate with high automation.

6.No pollution due to closed operation,so as to meet the sanitation standard.

7.Especially suitable for the granulating of those material which can not be done by wet granulating method.

Working principle

Powder material after mixing,sent to the feeding bin from granulatortop feeding mouth,mixed powder materials is pushed down by screw feeding mechanism,Powder

drops into the gap between the two rolrs,The roller is rotating and the powder is pressed into slices by cylinder,slices drop down and be granulated by granulator to

the particles that needed.

Technical Parameters
