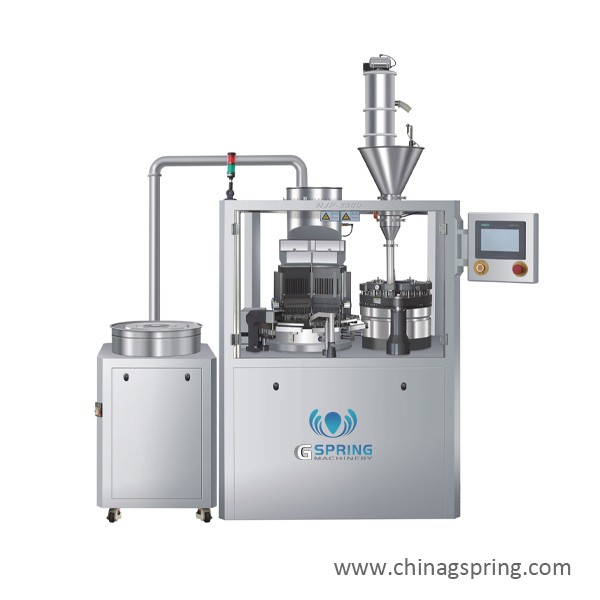

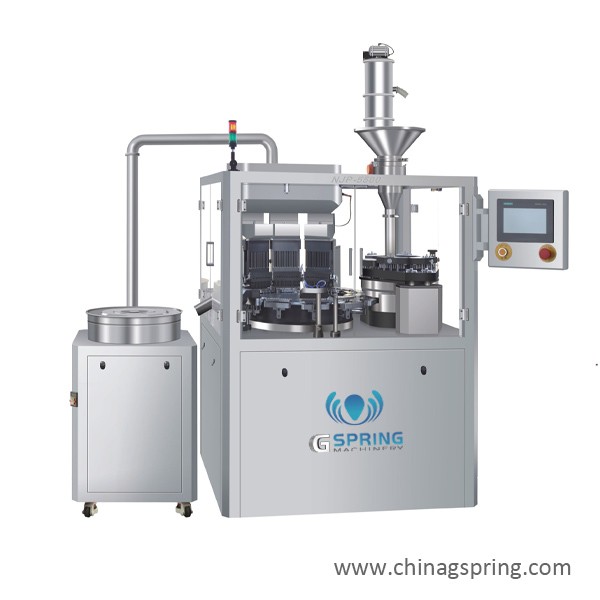

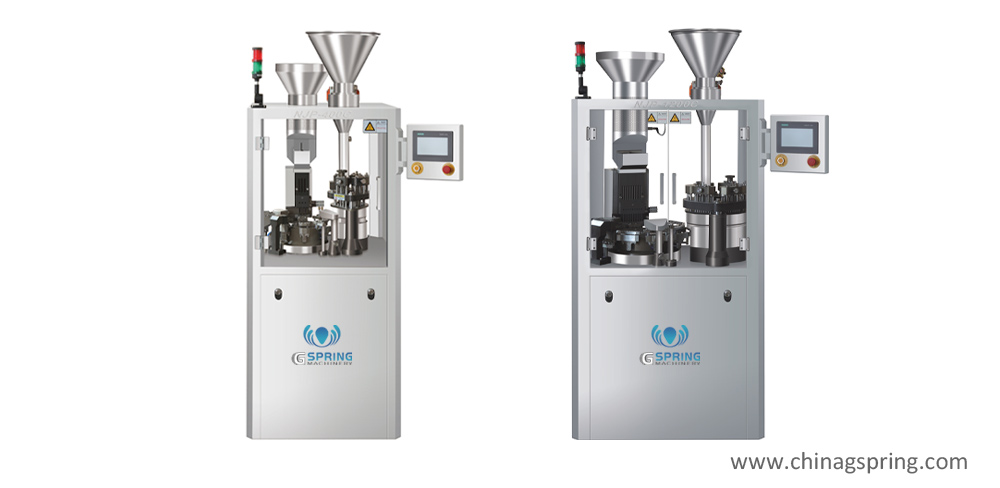

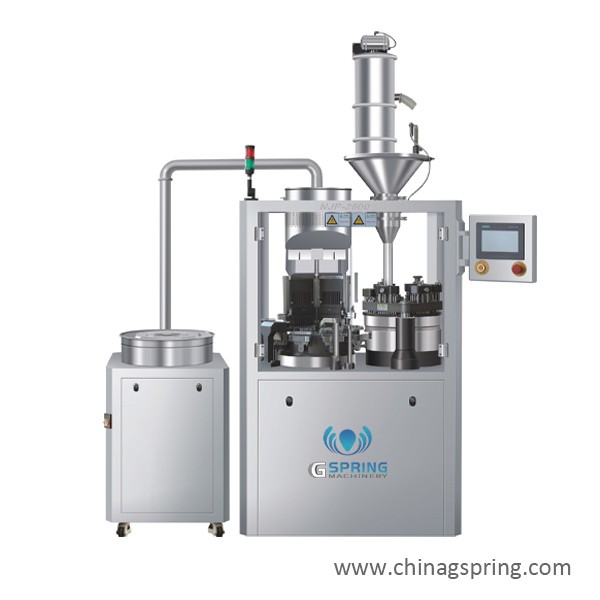

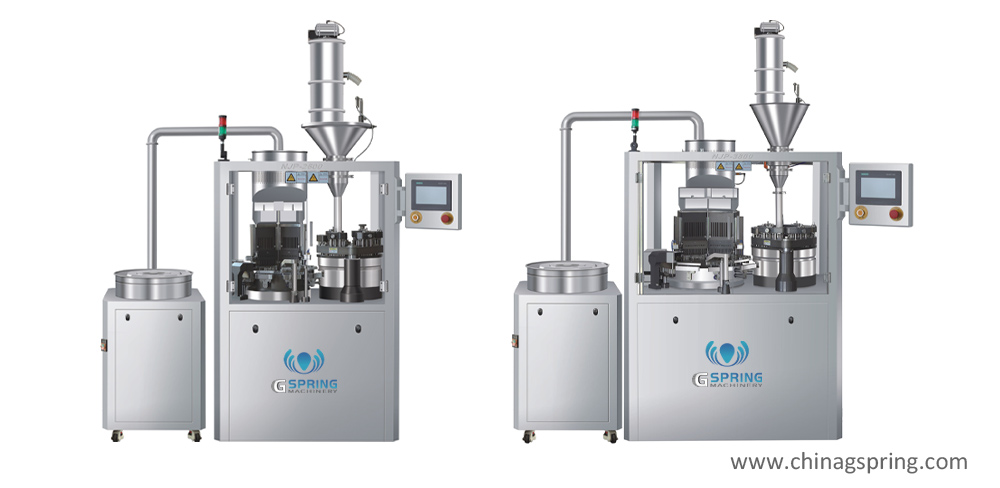

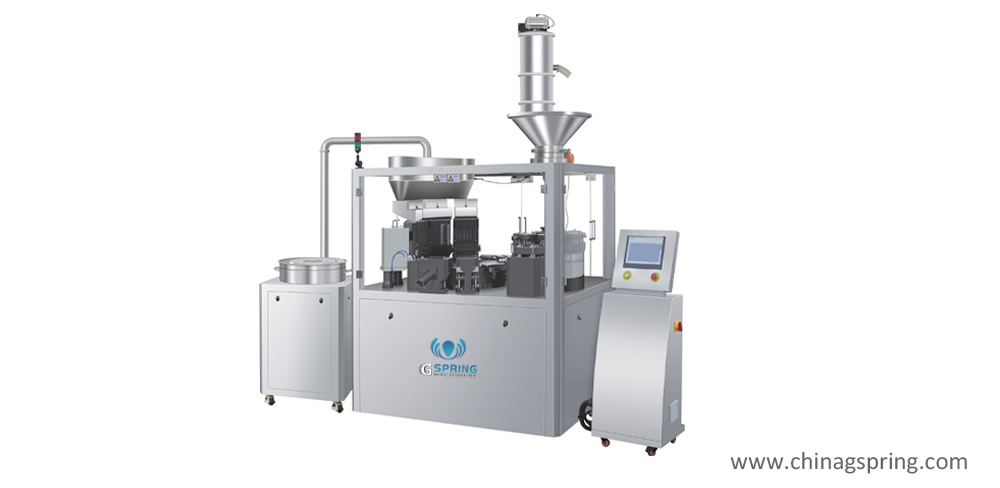

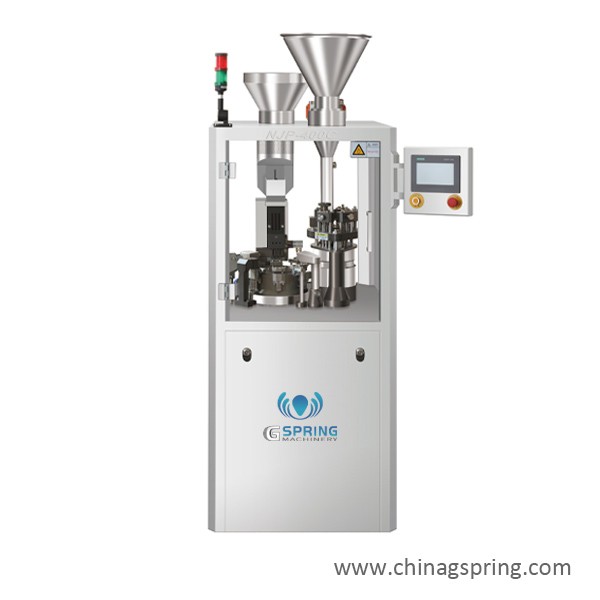

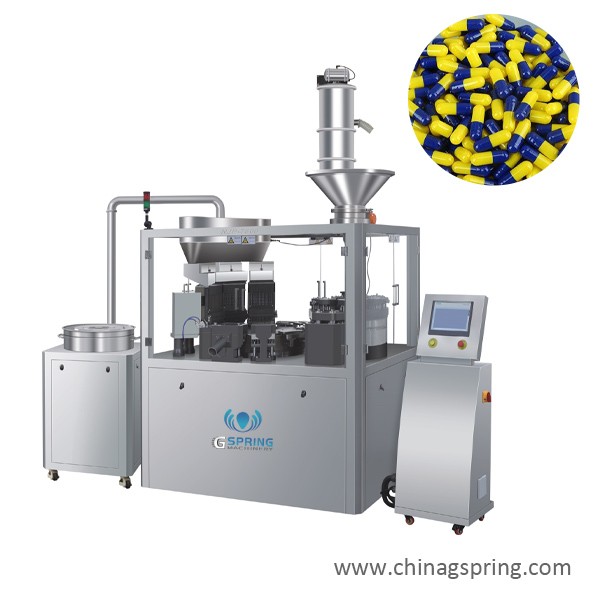

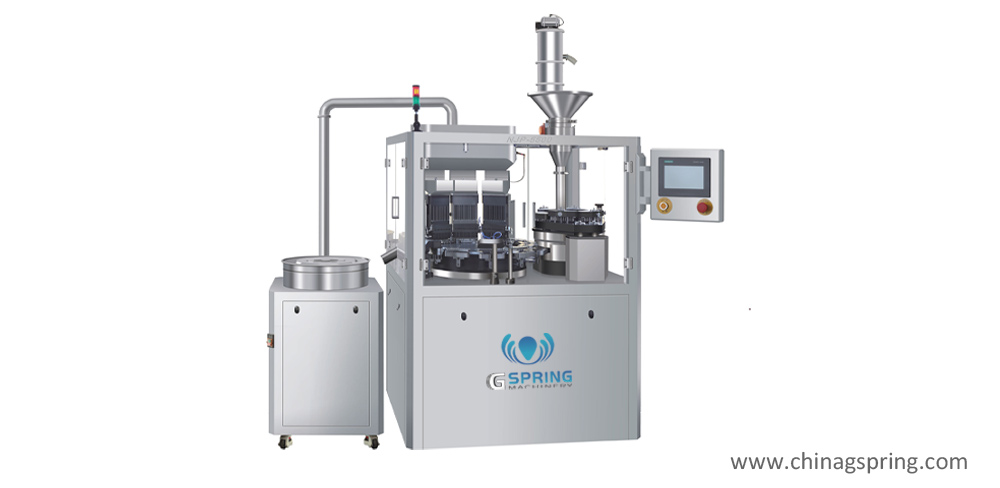

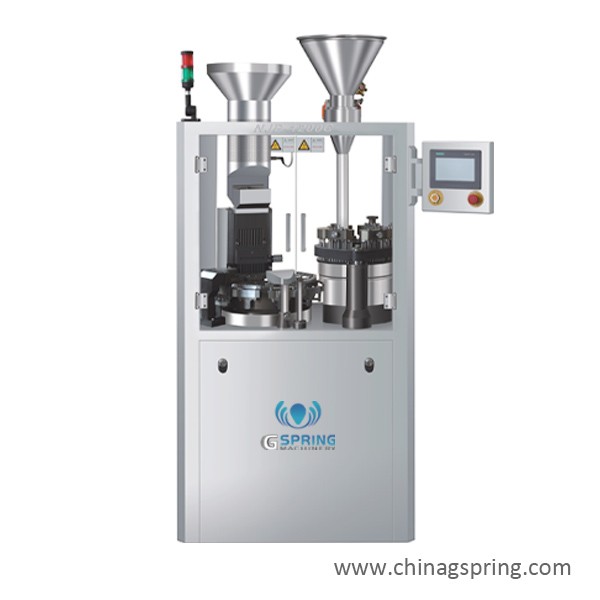

NJP series automatic capsule flling machine

NJP series automatic capsule flling machine

NJP series automatic capsule filing machine is a device that fils powder,particles or small pieces of materials into hollow capsules.


NJP series automatic capsule filing machine is a device that fils powder,particles or small pieces of materials into hollow capsules.

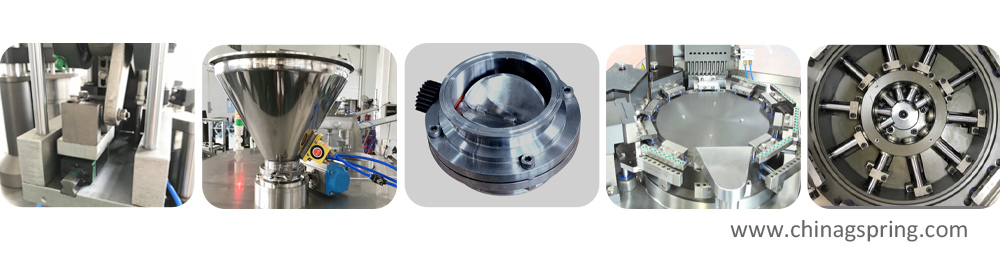

Main feature

1.The closed turntable mechanism,whose upper and lower modules do one way movement,has good airtightness,and solves the problems of mold disassembly and cleaning,

difficult assembly accuracy,etc.

2.The new filing mechanism is easy to install,disassemble and clean,and it is convenient to quickly adjust the gap between the measuring plate and the copper gasket,thus reducing the phenomenon of powder leakage.

3.Powder and waste capsule separation device.

4.Equipped with automatic cleaning mold system to automatically clean the upper and lower mold holes,effectively improving the seeding effect.

5.Automatic alarm and automatic shutdown function when the hopper is short of bag and powder.




Apolegamy

1.Printing system,door control system,automatic lubricating oil supply system of some models.

2.Pellet device and tablet device.(Select one).

3.Vacuum loading,vacuum loading capsule.



Technical Parameters

Model 型号	NJP-200C	NJP-400C	NJP-800C	NJP-1200C	NJP-2500C	NJP-3800C	NJP-5500C
模孔数量	2	3	6	9	18	25	43
Yield产量（粒/分钟）	200	400	800	1200	2500	3800	5500
Power(kw)电机功率	3		5	5.5	8	10.5	11
Host size(mm)主机尺寸	1000×710×1900		1100×900×2050	1100×910×2100	1100×1200×2000	1500×1200×2200	1500×1250×2200
Host weight(kg)主机重量	700		900	1000	1500	2200	3000
Power supply电源	220V/380V-50Hz三相四线
Applicable capsule适用胶囊	00#- 5# 和安全型胶囊A-E
Loading accuracy装量精度	西药±3% 中药±4%
Chance上机率	空胶囊 99.9% 满胶囊 99.8%
适应填充范围	粉状、颗粒、微丸、片剂Powder, granule, pellet, tablet
材质 Material	与胶囊和药物接触部分的零部件采用 304 和316L优质不锈钢 The parts in contact with the capsules and drugs are made of 304 and 316L high-quality stainless steel
